Pioneer Gm-d1004 4 Channel Car Amplifier Ts-g1620f 6.5" Ts-g6930f 6x9" Speakers

Pioneer Package GM-D1004 4 Channel Car Amplifier TS-G1620F 6.5" TS-G6930F 6x9" Speakers

Pioneer GM-D1004 Compact 4-channel car amplifier — 45 watts RMS x 4 @ 4 Homs

• compact 4-channel car amplifier
• dimensions: 8-1/8"W x 1-9/16"H x 2-9/16"D
• 45 watts RMS x 4 at 2 or 4 ohms
• 90 watts RMS x 2 at 4 ohms (4-ohm stable in bridged mode)
• CEA-2006 compliant
• Class FD amp technology
• universal harnesses let you get signal from RCA outputs or speaker-level wiring
• can run off same power circuit as receiver (must be 15-amp or more)
• switchable front and rear high- and low-pass filters (80 Hz, 12 dB/octave)
• fuse: 15A
• 10-gauge power and ground leads recommended, when necessary

Pioneer TS-G1620F 2-Way Speakers 300 Watts Peak

• Max. Music Power (Nominal): 300W (35W)
• Design : Coaxial 2-Way
• Size: 6-1/2
• Tweeter Design : 1-3/16" Balanced Dome
• Woofer Composition: Injected Molded Polypropylene (IMPP) with MICA
• Woofer Magnet Composition: Ferrite
• Woofer Surround: Rubber Coated Cloth
• Frequency Response : 31 Hz to 18 kHz
• Impedance : 4 Ohms
• Mounting Depth 1-3/4" (in.)

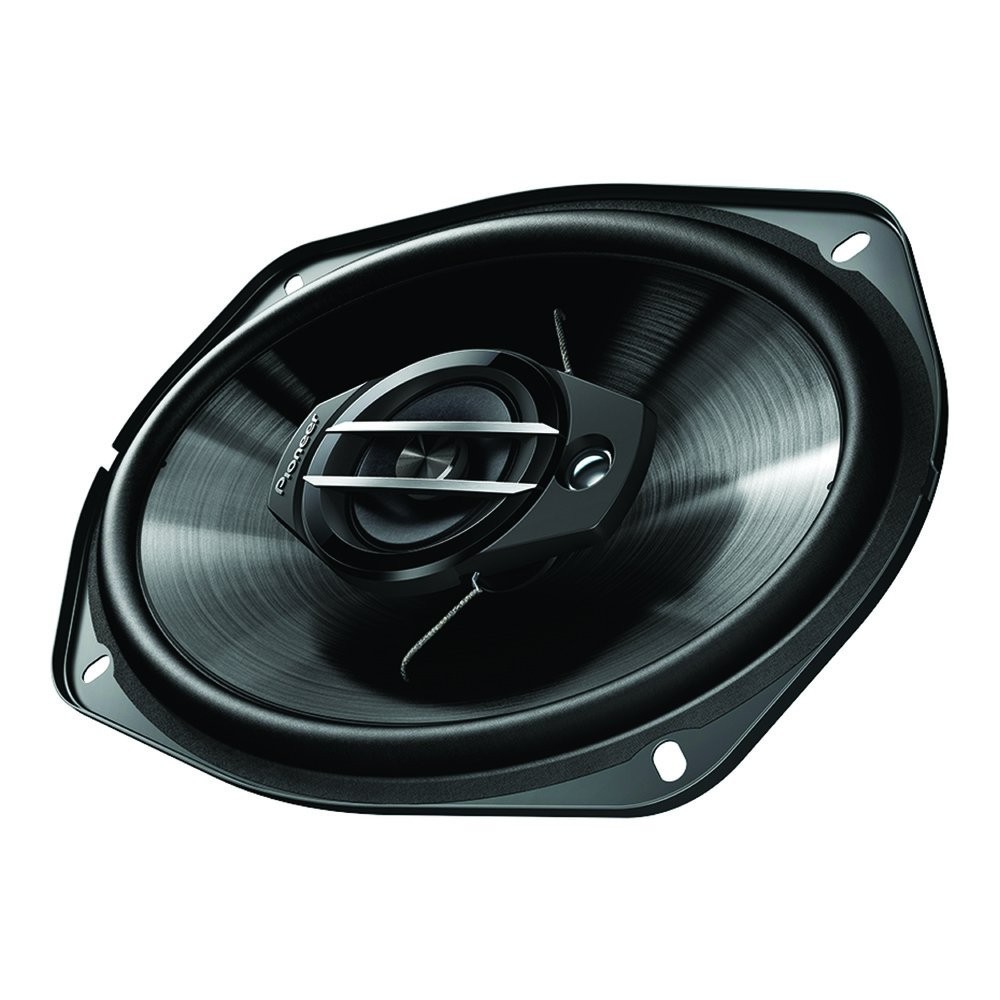

Pioneer TS-G6930F 3 -Way 400 Watts Peak

• Max. Music Power (Nominal): 400W (45W)
• Design : Coaxial 3-Way
• Size: 6" x 9"
• Tweeter Design : 1-3/16" Balanced Dome
• Woofer Composition: Injected Molded Polypropylene (IMPP) with MICA
• Woofer Magnet Composition: Ferrite
• Woofer Surround: Rubber Coated Cloth
• Frequency Response : 32 Hz to 32 kHz
• Impedance : 4 Ohms
• Mounting Depth 2-3/4" (in.)
• Sensitivity (1W/1 m) 90 dB
